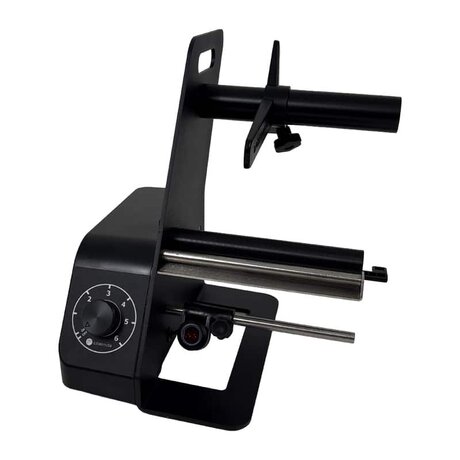

Label dispenser LD-115-RS. Automatic label dispenser. Practical tool for applying labels. Separates backing paper and places a label in pick position. As soon as a label is picked, a new one rolls ready to be applied. The LD-115-RS feeds labels at a speed of 26,7 mm / s ( max. 167 mm / s ) and handles a roll of 115 mm width and 220 mm in outer roll diameter. Dispenser not for transparent labels. ( For transparent choose LD-115-U )
1pc/pack
DIMENSIONS: W x D x H: 223 x 305 x 308,5 mm
MIN LABEL LENGTH: 6 mm
MIN LABEL WIDTH: 7 mm
All Label Dispensers come with 35 mm core holders
accepting all cores between 38 and 76 mm
• Maximum Label Roll Weight: 6 KG
• Minimum Speed: 2,67 cm/sec - maximum Speed:
16,7 cm/sec
• Power Supply: Input 100-240V 50hz / Output
15VDC - 4.33A
• Shipping Weight: 6 to 8 KG depending on model
& selected options
• Limited Warranty of 2 Years, 1 Year on the Power Supply
• Dust and water resistance: Rated IP50
